45° Profile 13x13mm - Silver

sku: XQ-212-M1313    category: LED Aluminium Profile    uom: Length

The 45° Profile 13x13mm - Silver is a sleek LED aluminium profile designed for neat, angled lighting installation. Its silver finish gives the setup a clean, modern look.

Recommended ADD-ONS

Specifications

Model No. XQ-337-Y2110

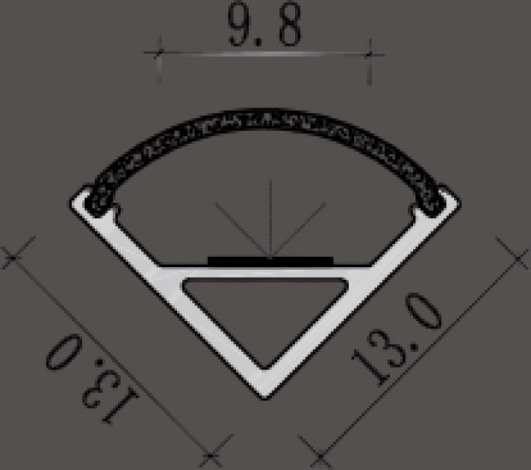

External Dimension W:13mm * H:13mm
Compatible LED Strip max width 8mm
Material Aluminum+PC
Aluminum Oxide Layer 7~10µ
Surface Treatment Anodising
Surface Color Silver
Available Length 3mtr
Lighting angle 45°
Cover Material Coverstro PC
Cover Color Milky
Cover Type Flat
Transmittance 80%

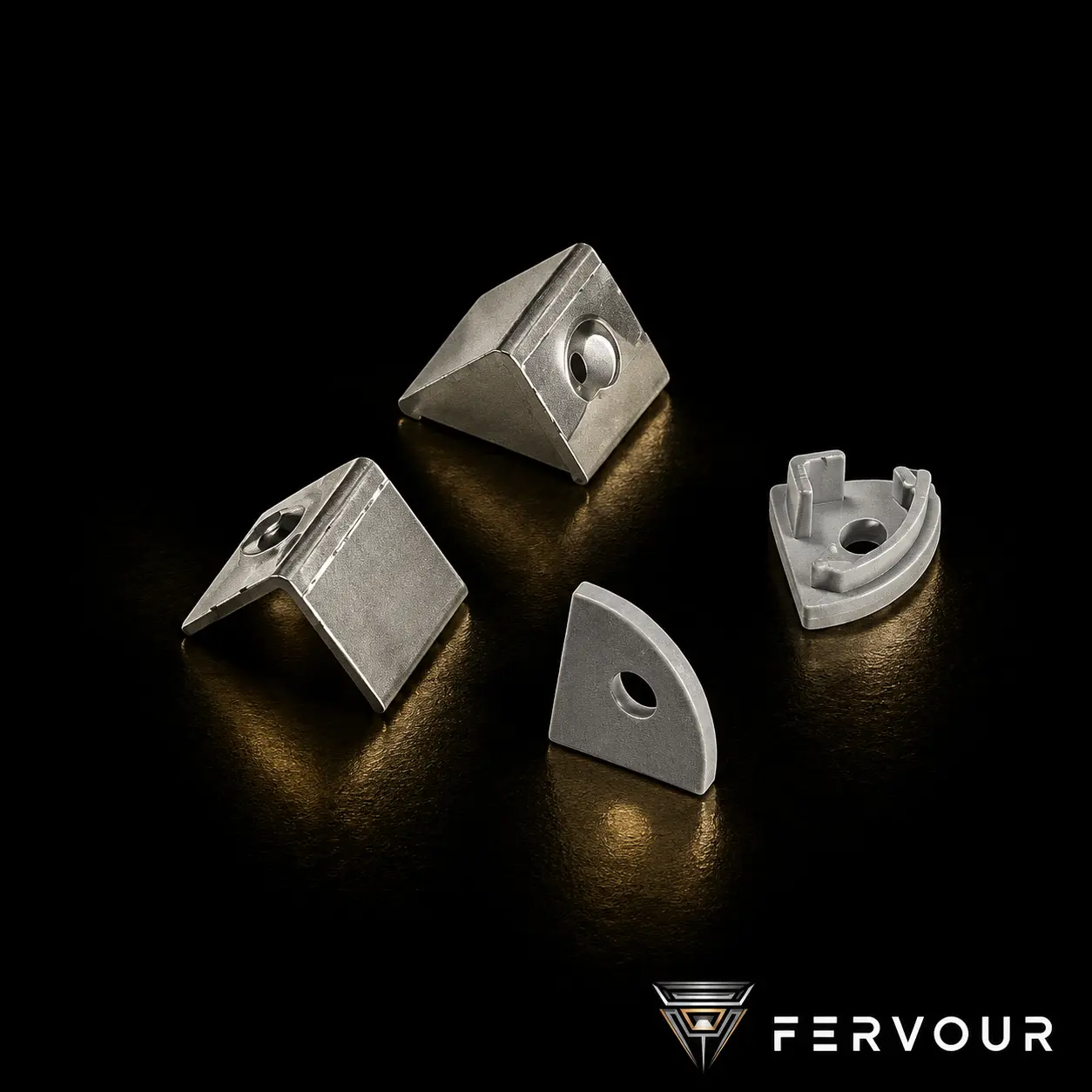

Accessories Clips & End caps

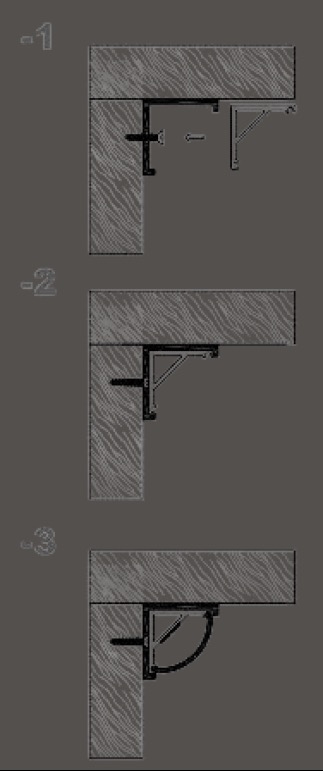

Installation Type Corner
Profile IP Rating IP20
Aluminum Weight 85g/m
